Panel-Tex™ Shapes
Prefabricated acoustic panels designed to make an impact.
Available in a variety of standard sizes, these shapes are as decorative as they are functional, offering effective sound absorption to enhance any space.

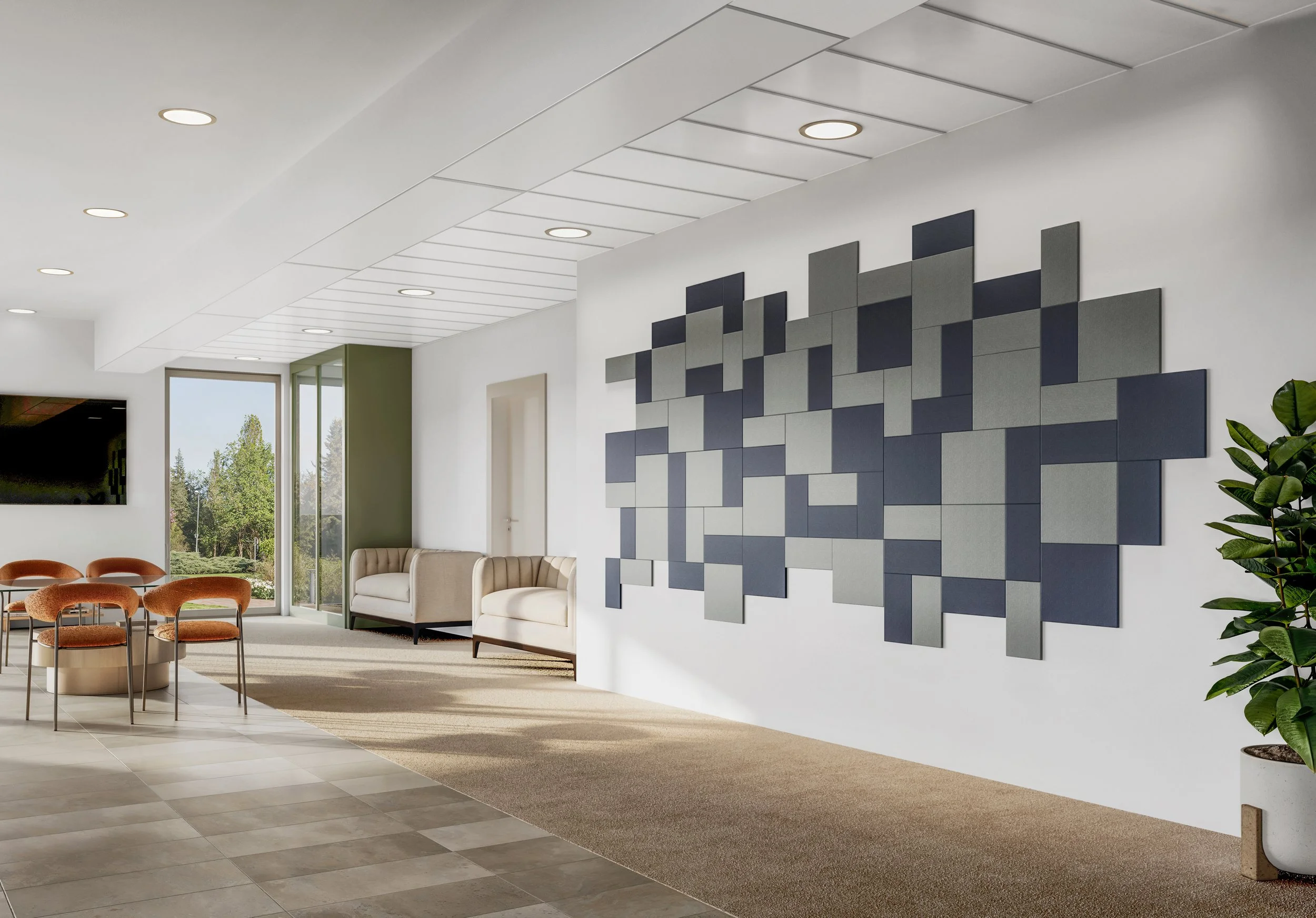

Use a single shape as a striking focal point, or mix a few shapes on the wall to create dynamic wall compositions that balance acoustics with design.
Shapes
Click each shape below to expand

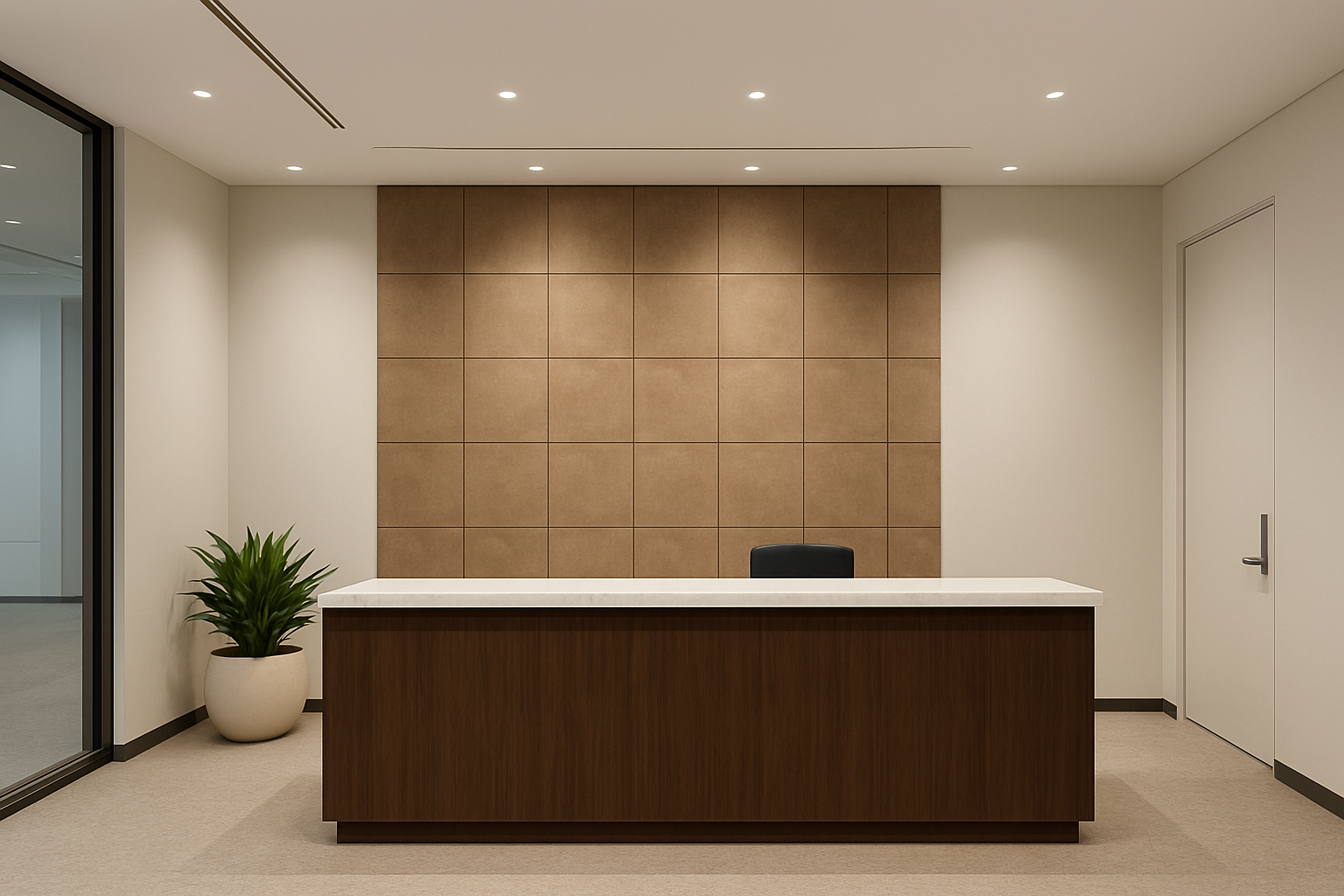

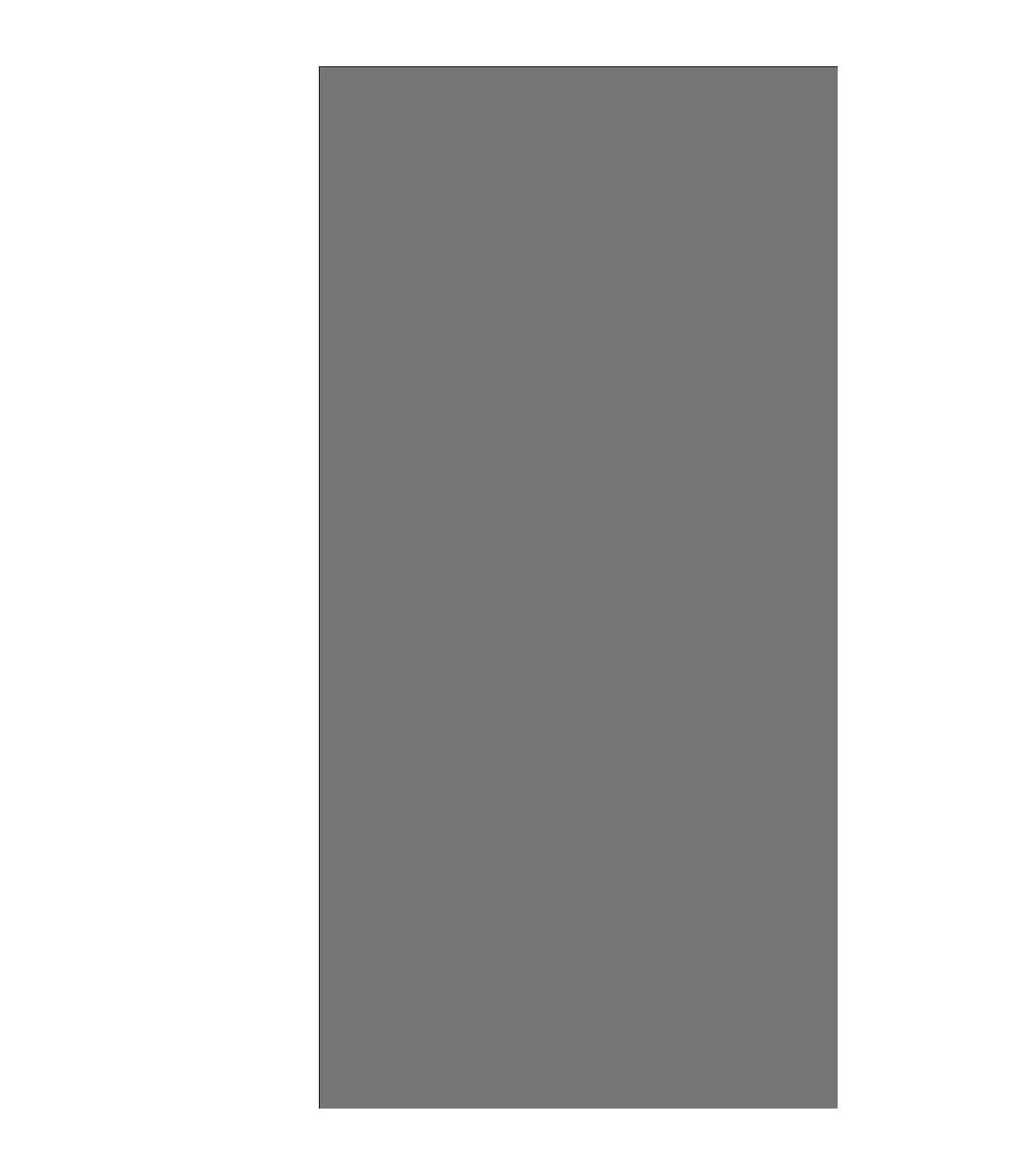

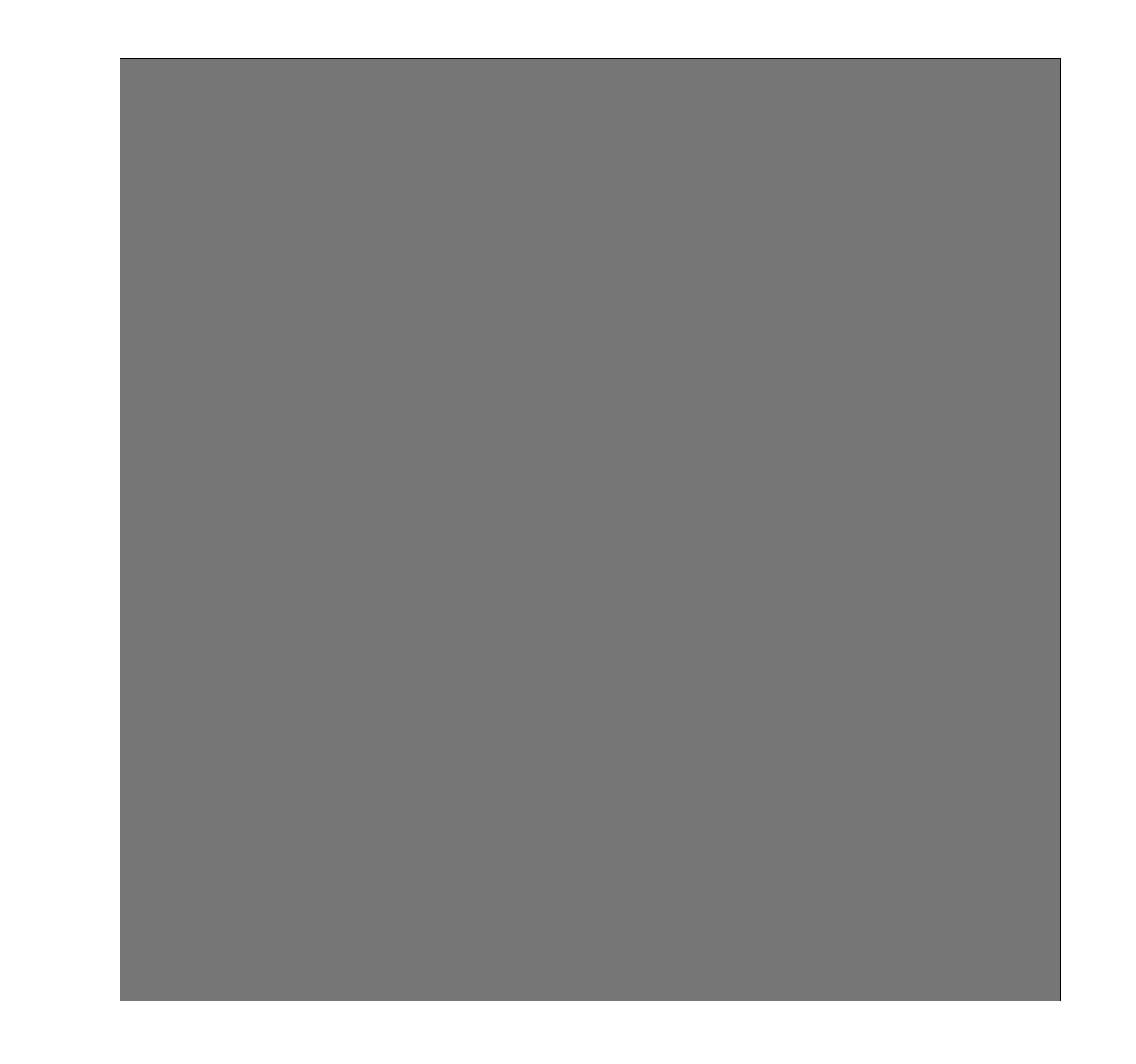

BLOCK

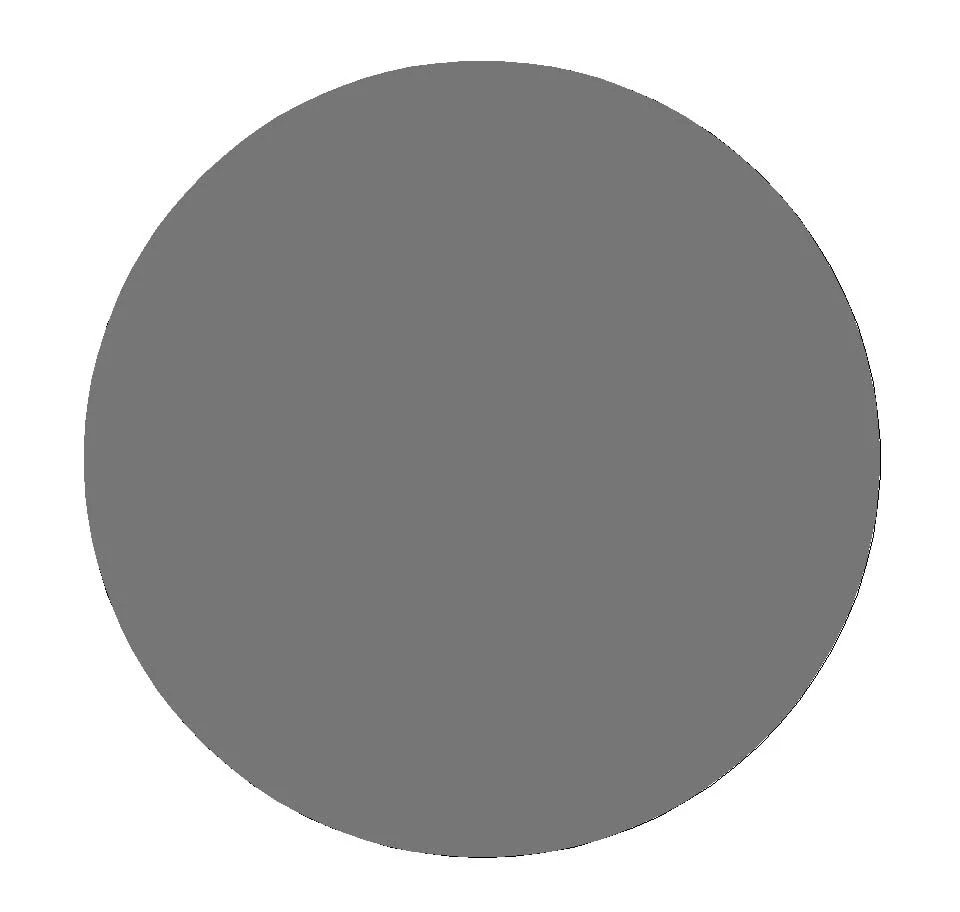

DISC

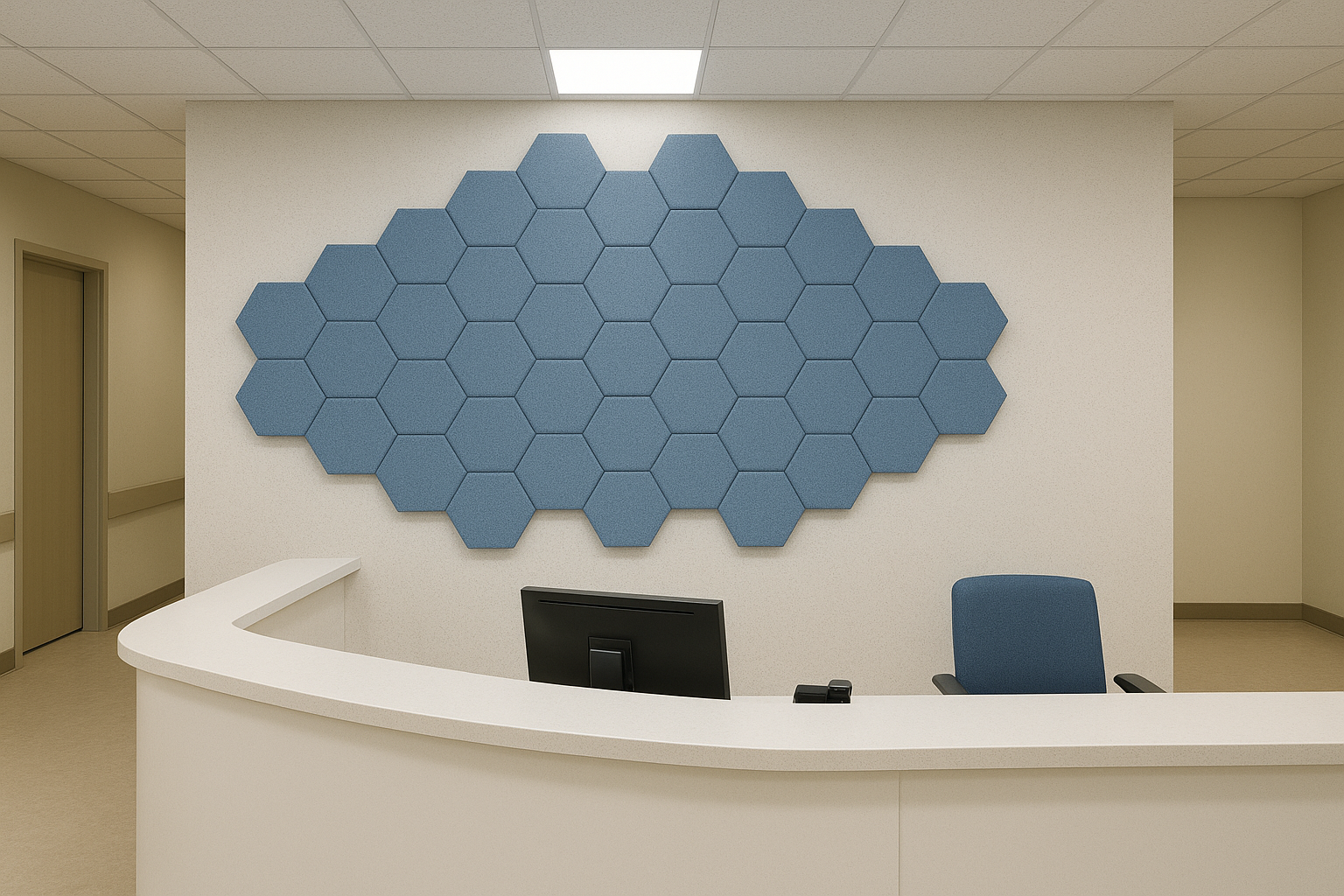

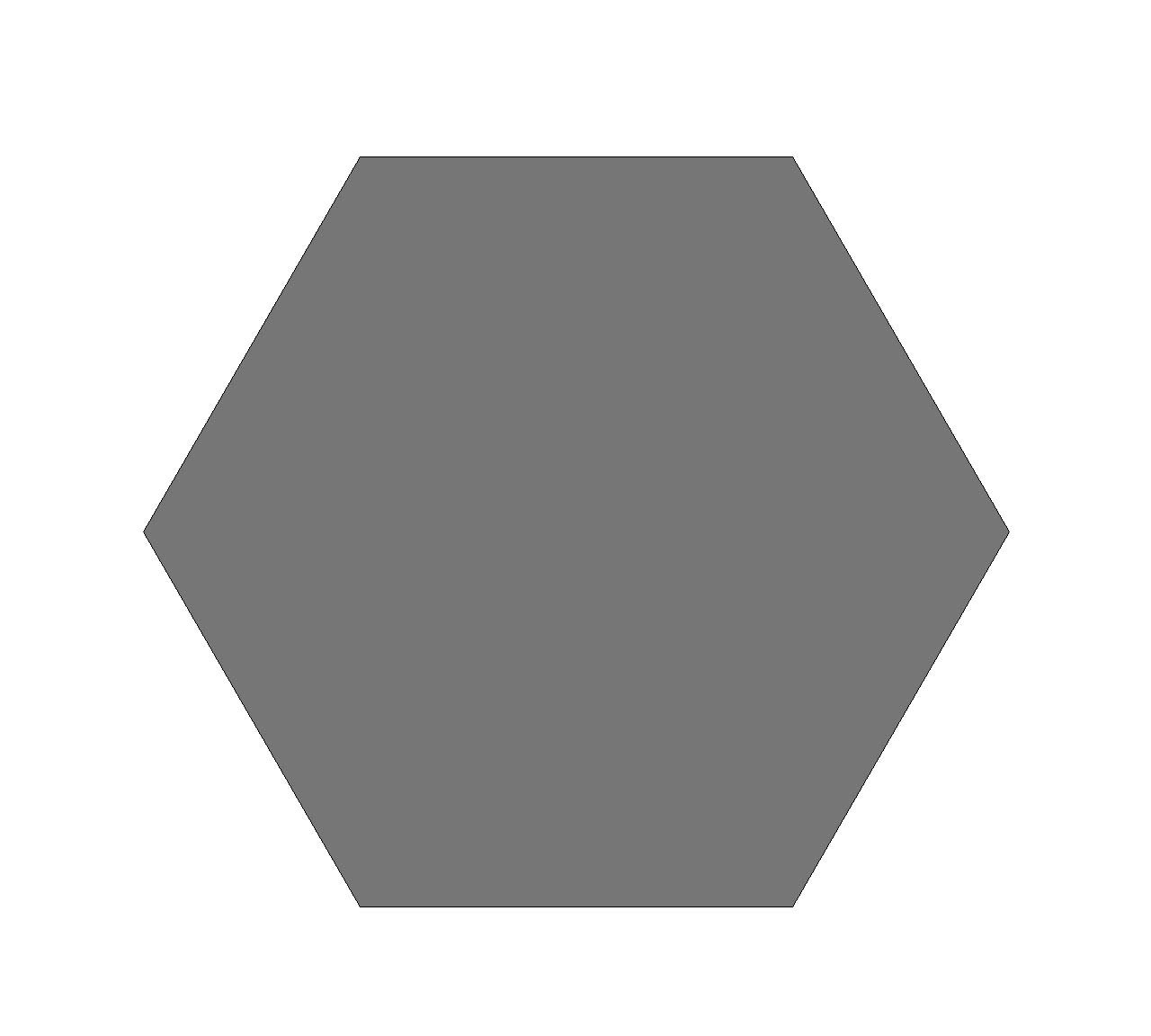

HIVE

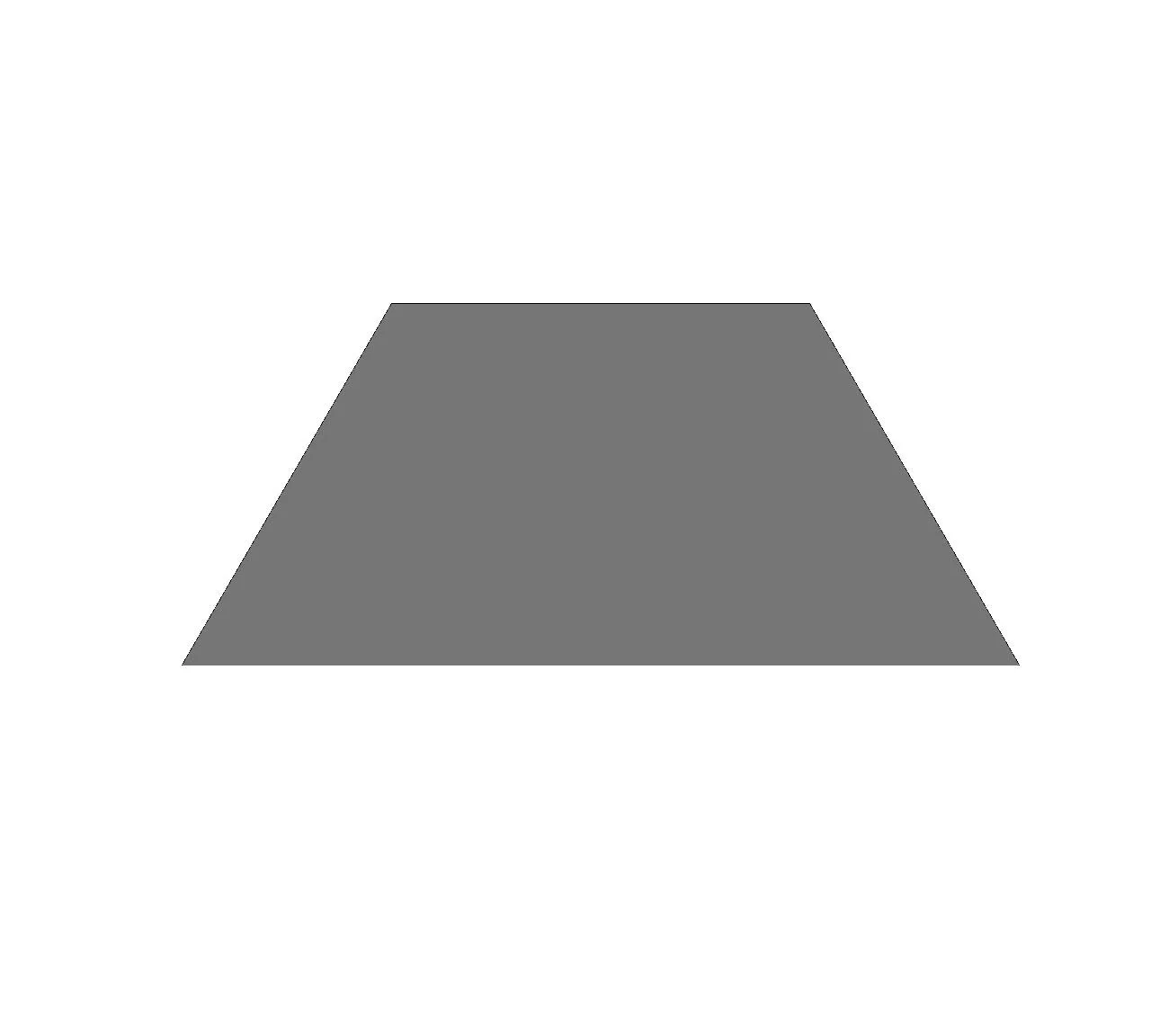

HALF HIVE

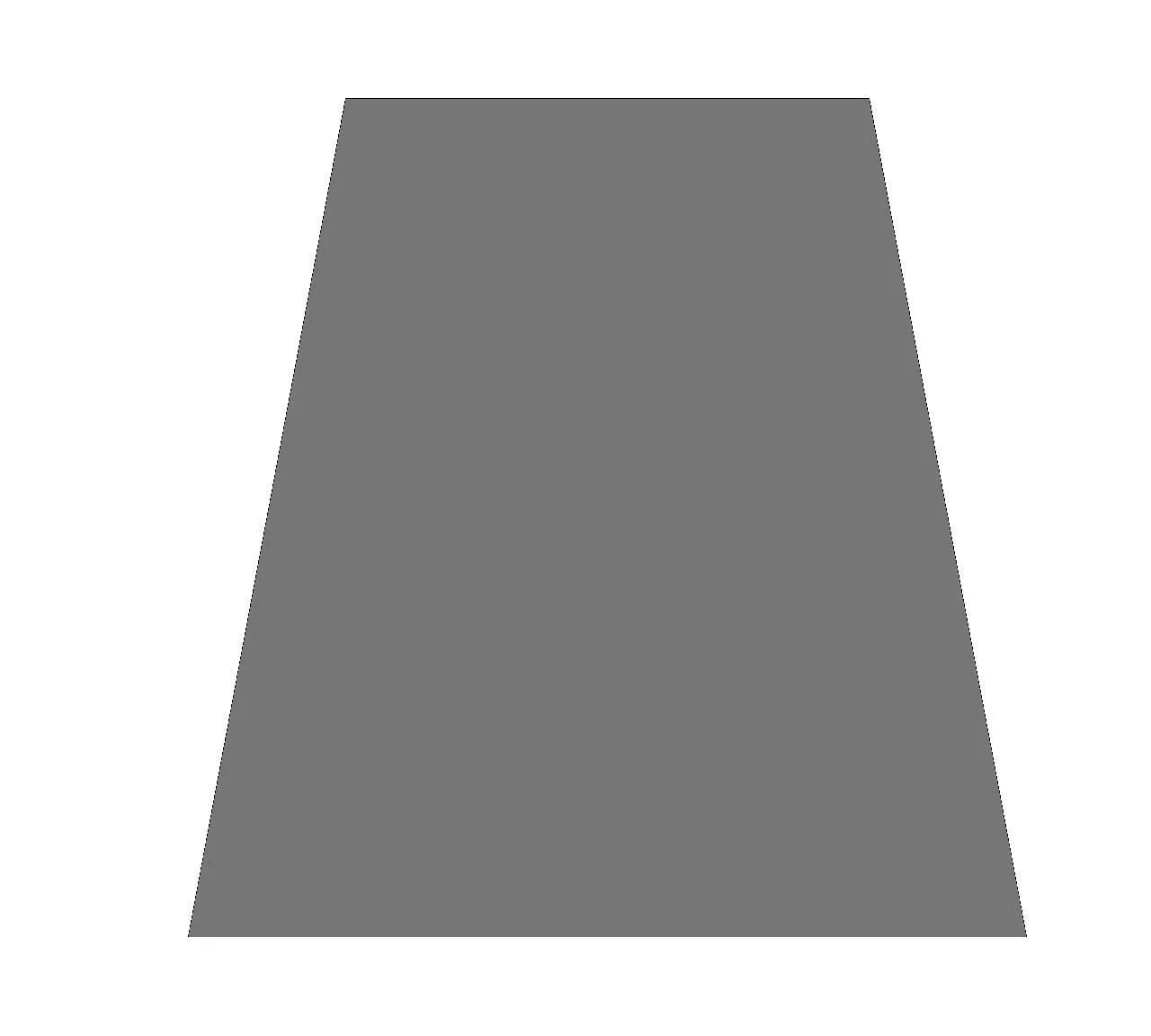

WEDGE
AXIS

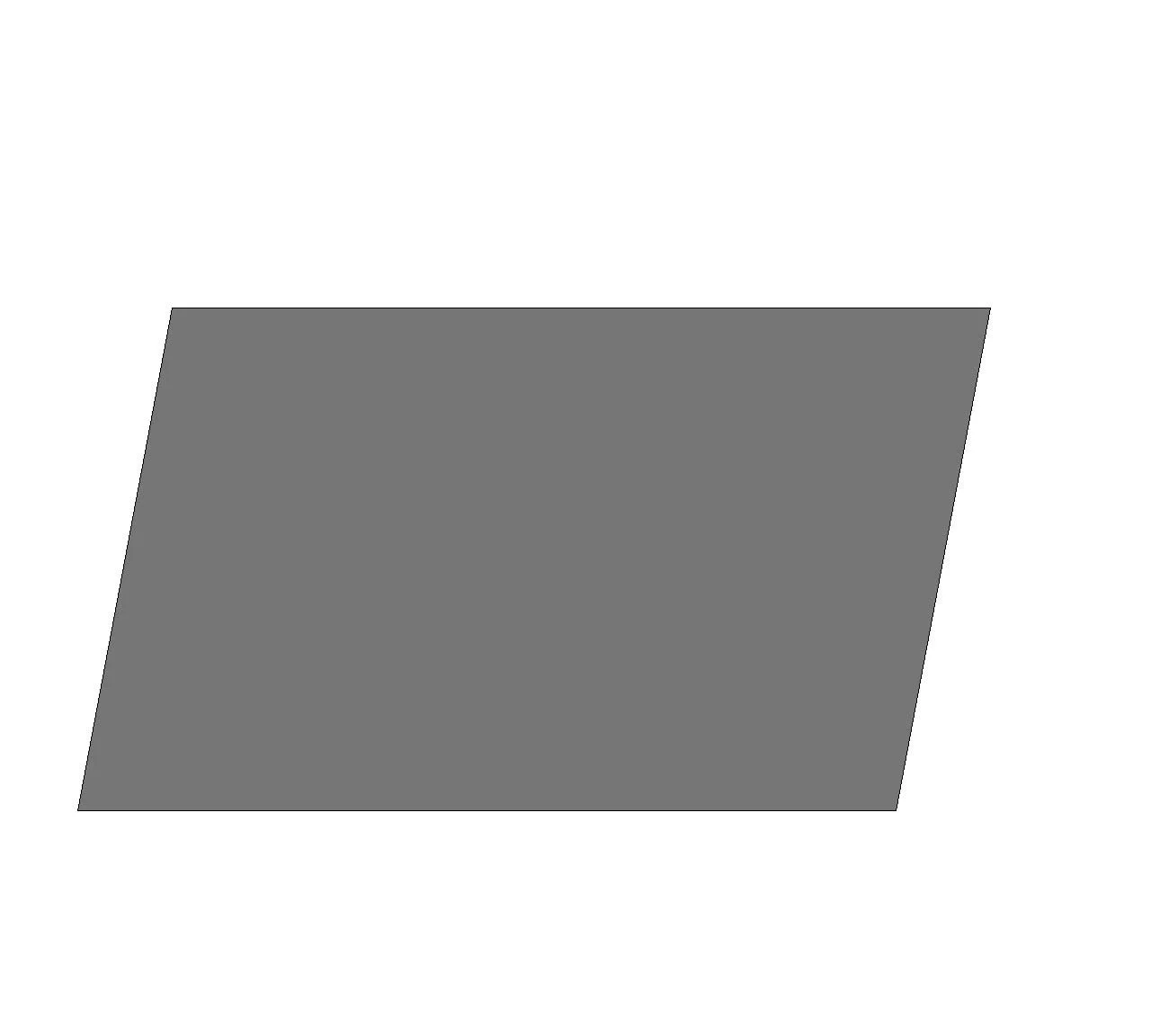

DOUBLE WEDGE

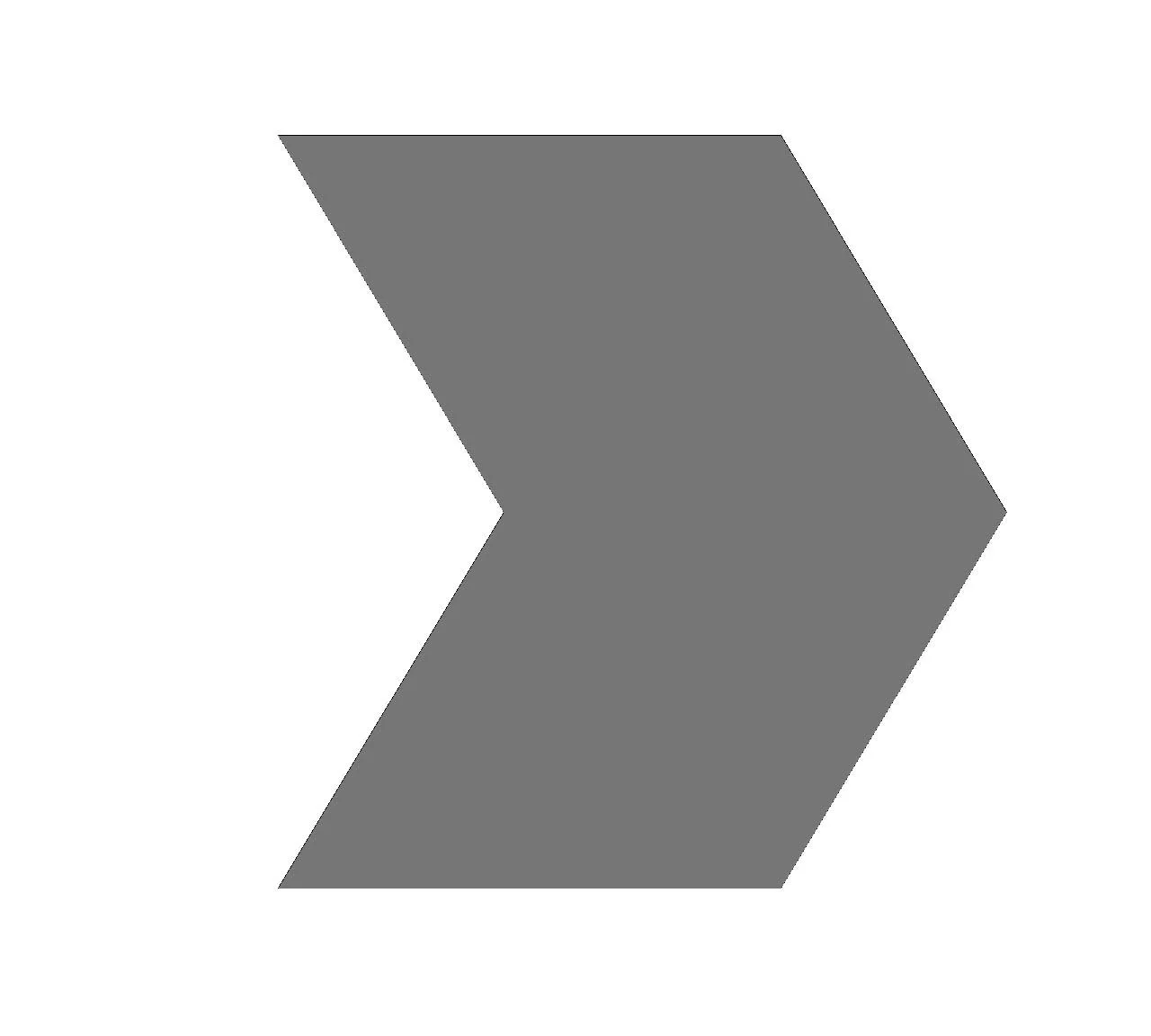

ARROW
-
Content Polyester Fiber Substrate (PET) + Fabric
Panel Thickness 0.47” (12mm) & 0.94” (24mm)
Tile Size Each shape is offered in 3-4 standard sizes. Click each shape above to see all available standard sizes.
Edge Options Wrapped Bevel
Mounting Options Fast-Tak (Adhesive + concealed nails)
Lead time 4-6 weeks
Fire Rating ASTM E84 Class A
Acoustic Rating ASTM C423: 0.47” NRC 0.30, 0.94” NRC 0.75 -
-
Explore Panel-Tex™ Bio, the same decorative shapes designed with healthcare in mind. Pair our antimicrobial acoustical substrate with high performance, cleanable fabrics by Designtex.
Cutsheet
