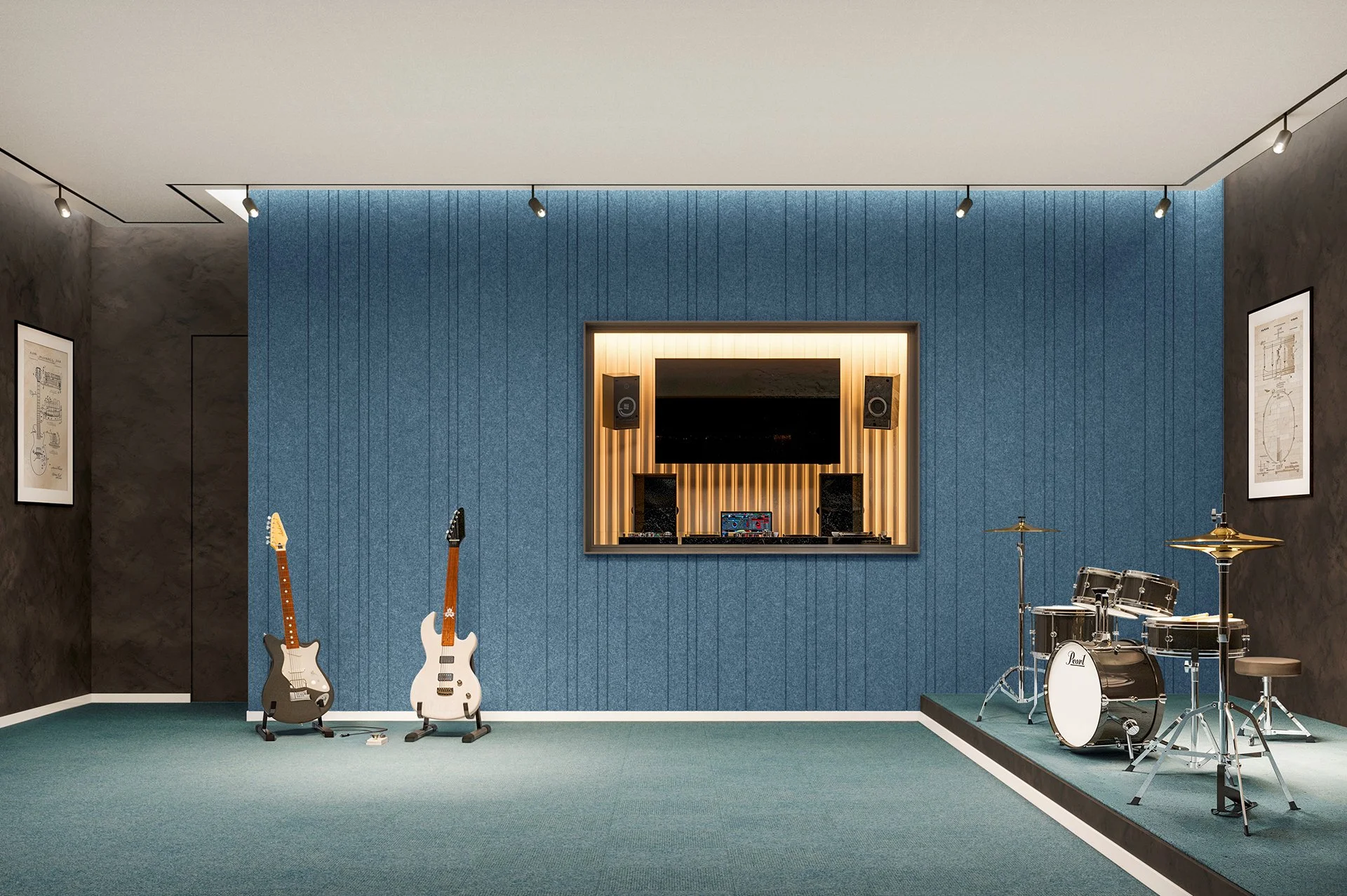

Lane
Made of 100% Polyester fiber (PET), Lane is offered in 9 standard V-groove linear patterns and a rich palette of over 100 colorways.
Specifying Lane
Select one of our standard patterns. For panels in a single color select from the (SO) color options. For a two-tone pattern, select from the (SO) colorways (base) + (SF) colorways (felt).
-
View Colors (SO + SF)
Download PDF -
Composition 100% Polyester Fiber (PET)
Panel Thickness 0.47″ or 0.94″ (12, 24mm)
Panel Width 47″ (1220 mm)
Panel Height 109″ (2800 mm)
V Groove Depth 6.5mm (Pattern B, Pattern F 5mm depth)
Lead Time 5-7 weeks (project specific)
Acoustics ASTMC 423: 1” 0.75 NRC, 0.74 SAA; 1/2” 0.33 NRC, 0.30
Environmental 75% recycled PET material. DFB’s entire Sound Out™ line is eco-friendly and VOC Free
ColorsClick here to view all available colors
Variations in color are inherent with Sound Out™ PET panel products
-
Composition 100% Polyester Fiber (PET)
Panel Thickness 0.47″ panel + 0.12″ felt (12mm + 3mm)
Maximum Panel Width 39″ (1000mm)
Maximum Panel Length 109″ (2780 mm)
Lead Time 6-8 weeks (project specific)
Acoustics ASTMC 423: 1” 0.75 NRC, 0.74 SAA; 1/2” 0.33 NRC, 0.30
Environmental 75% recycled PET material
Custom Custom sizes and colors available upon request
Colors Click here to view all colors (SO) colors & (SF) colors
-
Standard Patterns
The below standard patterns are not to scale and will be made to fit a full size, 47” x 109” panel when using a single SO color.
Click each image for specifications.

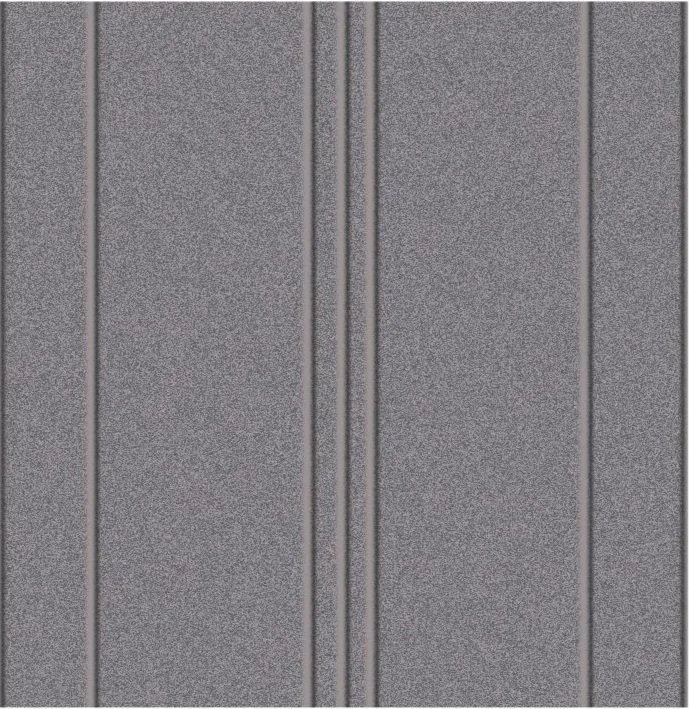

Pattern A

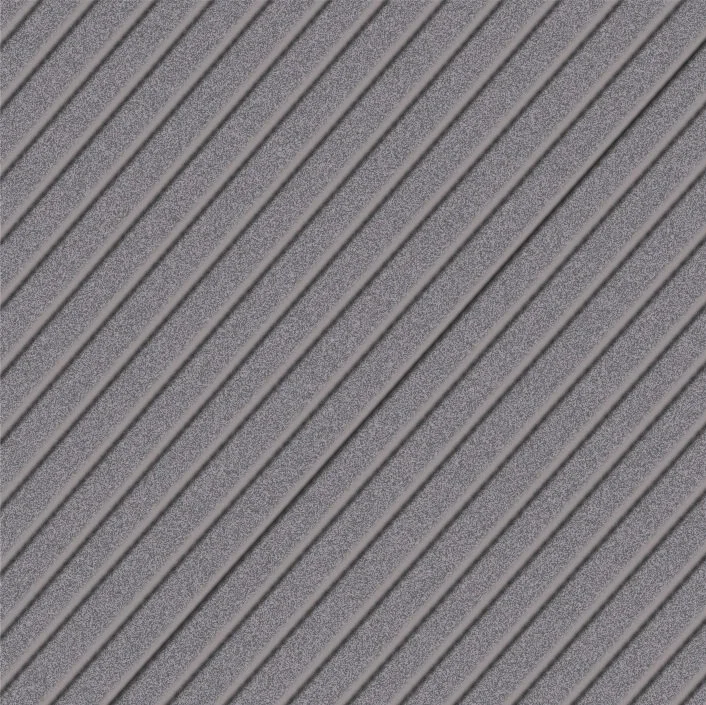

Pattern D

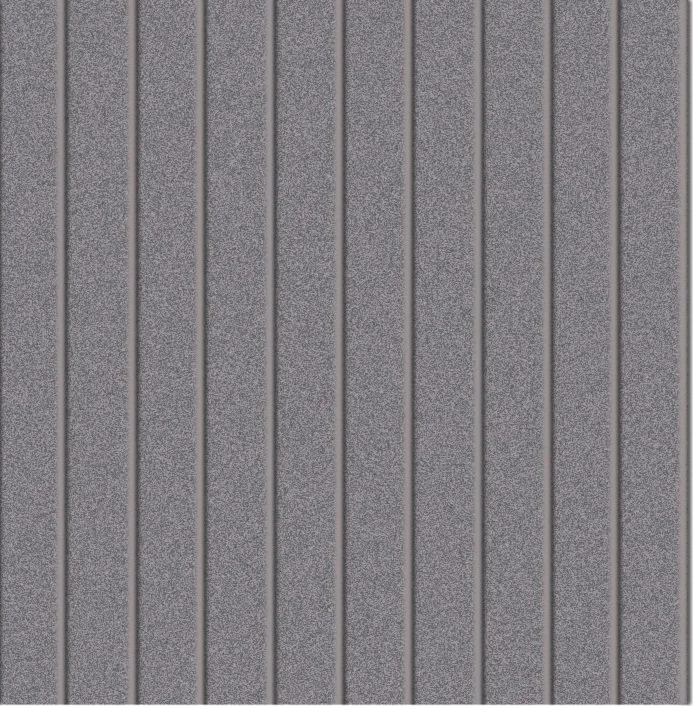

Pattern G

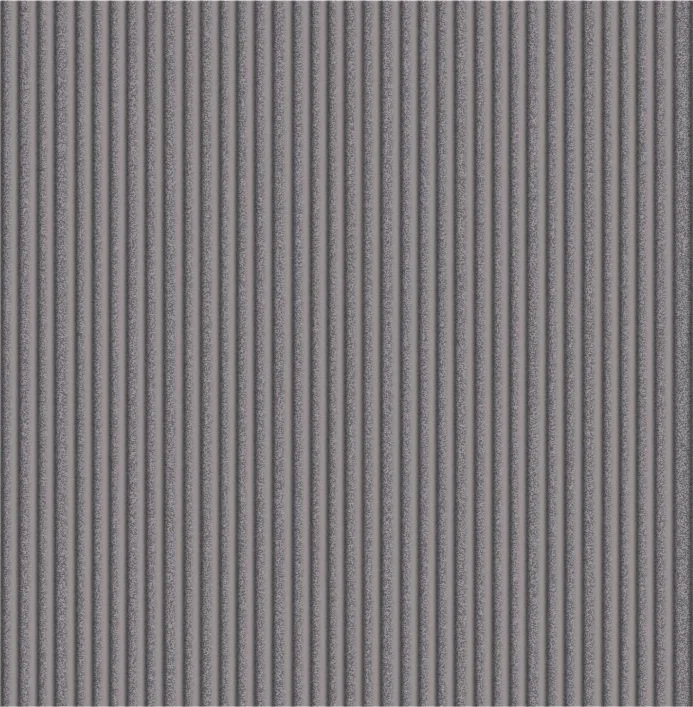

Pattern B

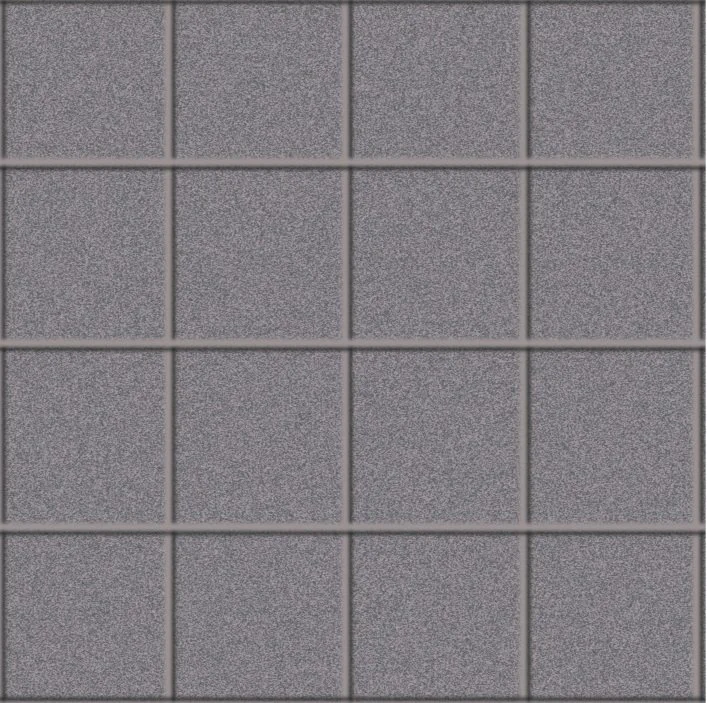

Pattern E

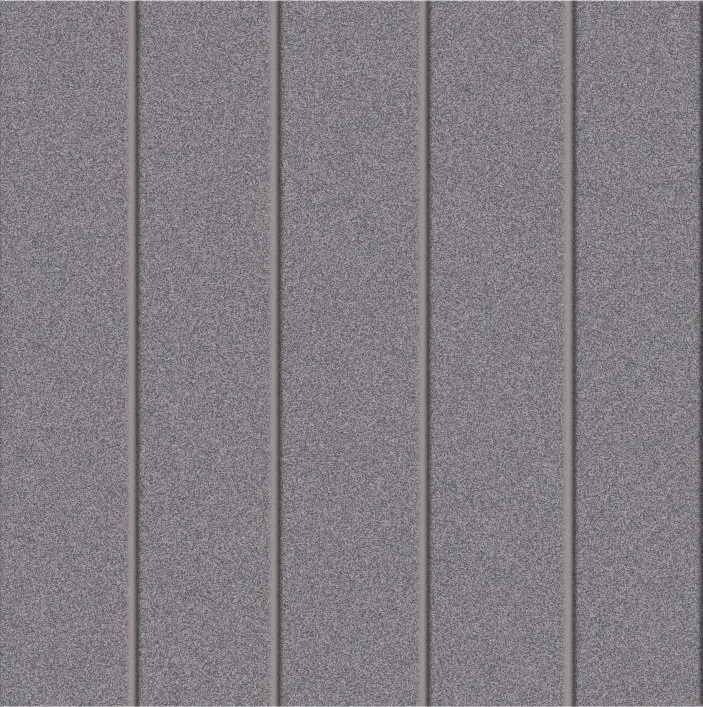

Pattern H

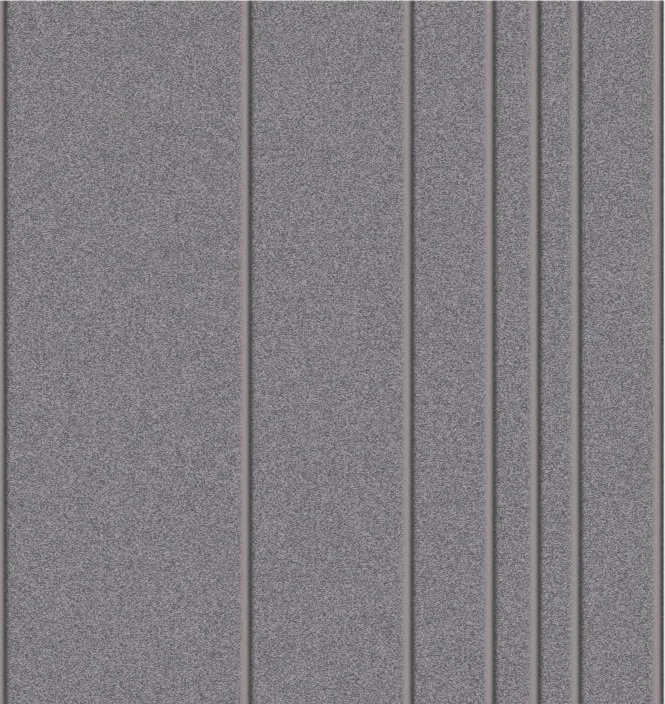

Pattern C

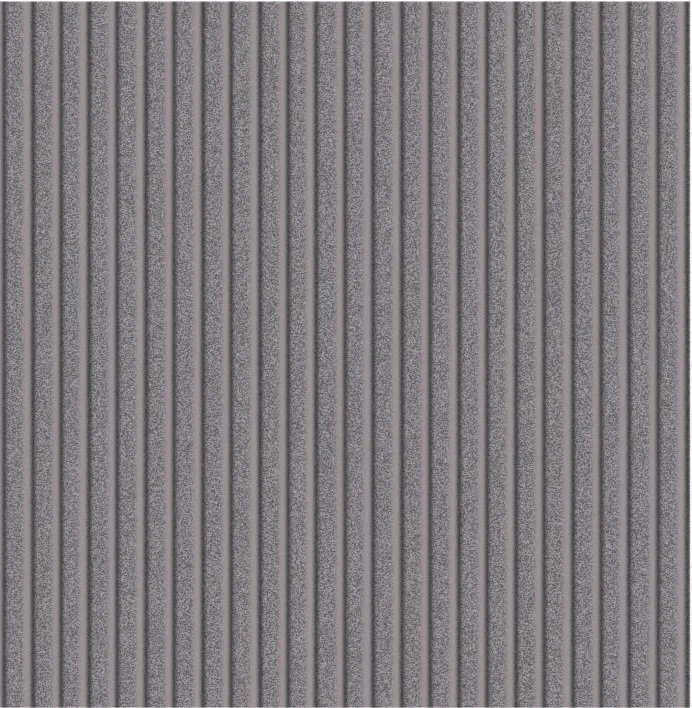

Pattern F
